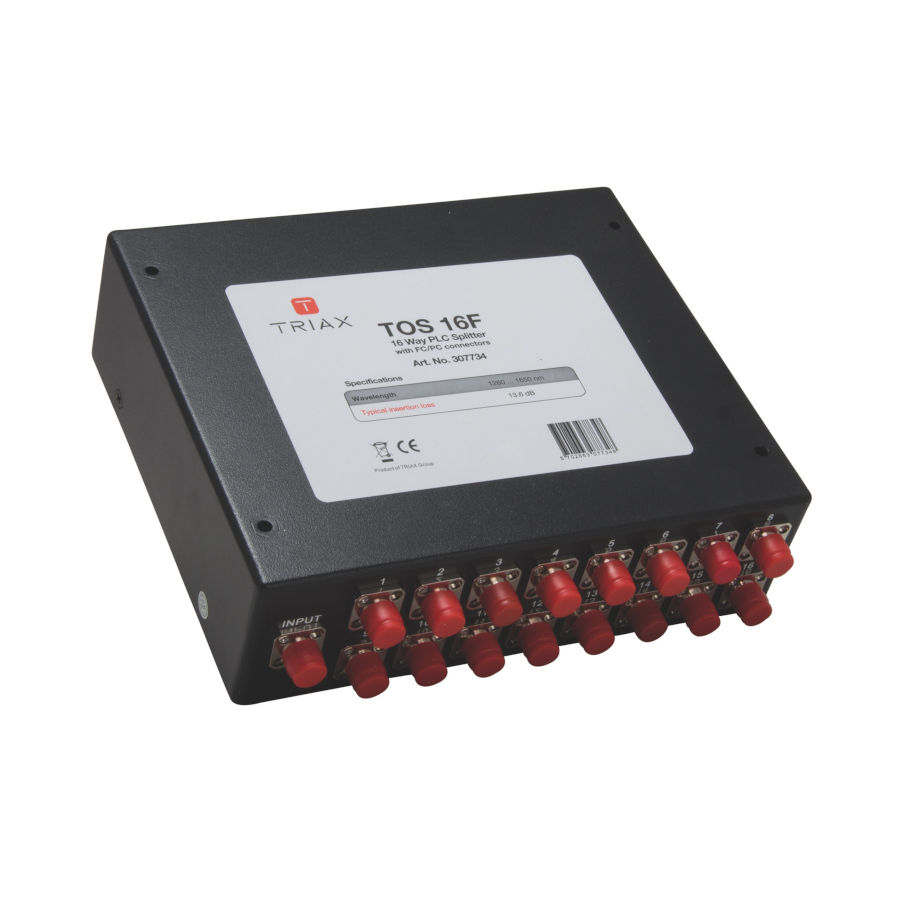

Optical TV, 16 Way Passive Splitter, TOS 16F, 16-way FC/PC
Item Code : TOS 16F, 16-way FC/PC - 307734
Product Details
Optical Fibre TV - Passive Optical Splitter
Triax - Optical TV, 16 Way Passive Splitter, TOS 16F, 16-way FC/PC
Item Code: TOS 16F, 16-way FC/PC - 307734
Brand: Triax
Manufacturer: Triax
Description
TOS 08F, 8-way PLC Splitter FC/PC
The balanced coupler is implemented in a valid metal housing
Features
- pre-assembled with FC/PC connectors
- PLC (Planar Lightwave Circuit) couplers with a wide window of wave lengths
- Low and flat insertion loss
Specification
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663077379 |
| CHARACTERISTICS | |
| Type | OPTO Coupler balanced |
| Coupling Ratio (OPTO) | 8x 12.5 % |
| Wavelength | 1260...1650 nm |
| LOSS | |
| Insertion loss (typ.) | 10.2 dB |
| CONNECTORS | |
| Connector Type | Optical - FC/PC |
| Number of inputs | 1 |
| Number of outputs | 8 |
| MECHANICAL | |
| Dimensions product (H x D x W) | 150x20x114 mm |
| Packing QTY | 1 |
| Packaging Height | 0,045 m |
| Packaging Width | 0,153 m |
| Packaging Depth | 0,213 m |
| Packaging Volume | 0,001 m3 |
| Net Weight | 0,286 kg |
| Tara Weight | 0,064 kg |
| Total Weight | 0,350 kg |
