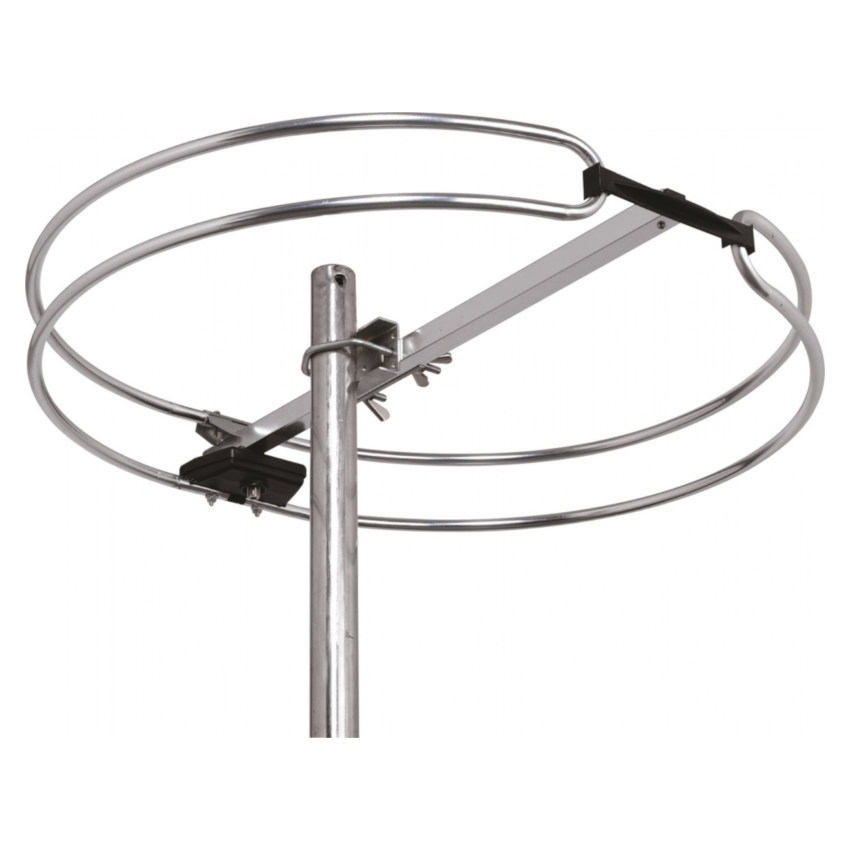

Omni FM Radio Aerial, FM Omni - 100188
Item Code : FM Omni - 100188
Product Details
Radio Aerial
Triax - Omni FM Radio Aerial, FM Omni - 100188
Item Code: FM Omni - 100188
Bar Code: 5702661001888
Brand: Triax
Manufacturer: Triax
FM Omni
Description
BII - FM Omni Mast
All aerials are provided with brackets for aerial masts up to Ø80 mm.
The F-female is supplied with weather boot.
Specification
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702661001888 |
| CHARACTERISTICS | |
| Type | FM omni |
| FREQUENCY | |
| Band | B II / FM |
| Channels | FM |
| Frequency range FM | 87,5...108 MHz |
| GAIN | |
| Gain | -2.0 dBi |
| ELECTRICAL | |
| Front to back ratio - horisontal | 0 dB |
| Impedance | 75 Ω |
| CONNECTORS | |
| Connector Type | F-female |
| MECHANICAL | |
| Diameter | 540 mm |
| Elements | 1 |
| Windload | 16 N |
| Beamwidth horisontal | ± 180 ° |
| Bracketry | 8 mm Mast Bracket |
| Construction type | MTHV |
| Main material | Aluminium |
| Individual Polybag | Yes |
| Packing QTY | 10 |
| Packaging Height | 0,080 m |
| Packaging Width | 0,540 m |
| Packaging Depth | 0,540 m |
| Packaging Volume | 0,023 m3 |
| Net Weight | 0,790 kg |
| Tara Weight | 0,010 kg |
| Total Weight | 0,800 kg |
