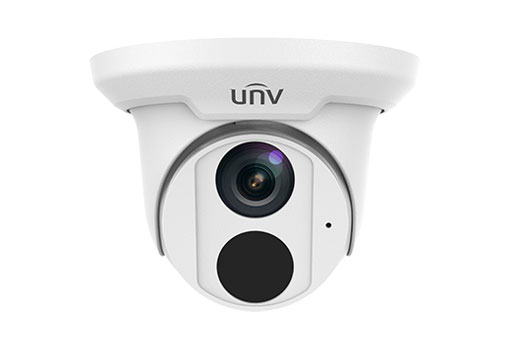

IP Camera 5MP 2.8mm Lens , TM-5 UE White
Item Code : TM-5 UE White
Features
- Starlight illumination
- Day/night functionality
- Up to 120dB WDR (Wide Dynamic Range)
- Smart IR, up to 30m (98ft) IR distance
- Ultra 265, H.264, MJPEG
- Triple streams
- 9:16 corridor format
- ONVIF Conformance
- Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- 4KV surge protection designed for network interface
- IP67
- 3-Axis
Optics
Compression
Network
Structure
Specification
Camera | Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | ||||
| Lens | 2.8mm@F1.6 | |||||
| DORI Distance | Lens | 2.8mm | ||||
| Detect | 63m | |||||
| Observe | 25.2m | |||||
| Recognize | 12.6m | |||||
| Identify | 6.3m | |||||
| Angle of view (H) | 105.3° | |||||
| Angle of View (V) | 69.5° | |||||
| Angle of View (O) | 136.8° | |||||
| Adjustment angle | Pan | 0° ~ 360° | ||||
| Tilt | 0° ~ 90° | |||||
| Rotate | 0° ~ 360° | |||||
| Shutter | Auto/Manual, | 1 ~ 1/100000s | ||||
| Minimum Illumination | Colour: 0.005Lux (F1.6, AGC ON) 0Lux with IR | |||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| S/N | >52dB | |||||
| IR Range | Up to 30m (98ft) IR range | |||||
| Defog | Digital Defog | |||||
| WDR | 120dB | |||||
Video | Video Compression | Ultra 265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | |||||
| Frame Rate | Main Stream: | 5MP (2592*1944), Max 20fps; 4MP (2560*1440), Max 30fps; 3MP (2048*1536), Max 30fps; 2MP (1920*1080), Max 30fps; | ||||
| Sub Stream: | 2MP (1920*1080), Max 30fps; | |||||
| Third Stream: | D1 (720*576), Max 30fps | |||||
| HLC | Supported | |||||
| BLC | Supported | |||||
| 9:16 Corridor Mode | Supported | |||||
| OSD | Up to 8 OSDs | |||||
| Privacy Mask | Up to 8 areas | |||||
| ROI | Up to 8 areas | |||||
| Motion Detection | Up to 4 areas | |||||
Audio | Audio Compression | G.711 | ||||
| Suppression | Supported | |||||
| Sampling Rate | 8KHZ | |||||
Network | Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | ||||
| Compatible Integration | ONVIF (Profile S, Profile T), API | |||||
Interface | Network | 1 RJ45 | 10M/100M Base-TX Ethernet | |||
| Built-in Mic | Supported | |||||
General | Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||
| Dimensions (Ø x H) | F126 x 94mm (Ø5.0” x 3.7”) | |||||
| Weight | 0.45kg (0.99lb) | |||||
| Operating Conditions | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: =95% RH (non-condensing) | |||||
| Ingress Protection | IP67 |
