XLR : Chassis Socket 3 Pin, cable screw fix : NC3FD-S-1-B
Item Code : NC3FD-S-1-B
Product Details
XLR Connectors
Neutrik - XLR : Chassis Socket 3 Pin, cable screw fix : NC3FD-S-1-B
Item Code: NC3FD-S-1-B
Brand: Neutrik
Manufacturer: Neutrik
XLR : Chassis Socket 3 Pin, cable screw fix : NC3FD-S-1-B
Description

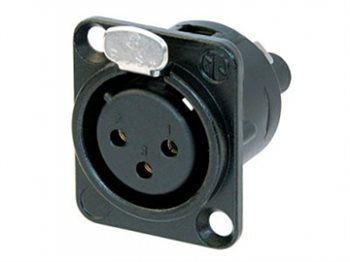

XLR 3 Pin Female Chassis Screw Term Black Body Gold PinsNC3FD-S-1-B
3 pole female receptacle
D-size metal body
Screw terminals accommodating wire range 0.14mm to 0.5mm (AWG 26 -20)
Black metal housing
Gold contacts
UL recognized component
Specification
| Connector Type | XLR | |
| Gender | female | |
| Body colour | Black | |
| Contacts | gold | |
| Rated current per contact | 3 A | |
| Dielectric strength | 1.5 kV dc | |
| Rated voltage | 50 V | |
| Wire size | 0.14 mm - 0.5 mm | |
| Wire size | 26 AWG - 20 AWG | |
| Wiring | Screw terminals | |
| Locking device | latch lock | |
| Mounting direction | front | |
| Chassis shape | D | |
| Protection class | IP 40 |
